| Model No. | Caliber | Capacity (m 3 /h) | Head (m) | Power (kW) | |
| Voltage |
| Inlet(mm) | Outlet(mm) | (V) |
| CQB15-10-85 | 15 | 10 | 1.8 | 8 | 0.12 | 220/380 |
| CQB20-15-105 | 20 | 15 | 3 | 12 | 0.37 | 220/380 |
| CQB32-25-125 | 32 | 25 | 3.2 | 20 | 0.75 | 380 |
| CQB32-25-145 | 32 | 25 | 3.2 | 25 | 0.75 | 380 |
| CQB40-32-115 | 40 | 32 | 6.3 | 15 | 0.75 | 380 |
| CQB40-32-145 | 40 | 32 | 6.3 | 25 | 1.5 | 380 |
| CQB40-32-160 | 40 | 32 | 6.3 | 32 | 2.2 | 380 |
| CQB50-40-125 | 50 | 40 | 12.5 | 20 | 2.2 | 380 |
| CQB50-40-160 | 50 | 40 | 12.5 | 32 | 3 | 380 |
| CQB65-50-125 | 65 | 50 | 25 | 20 | 3 | 380 |
| CQB65-50-160 | 65 | 50 | 25 | 32 | 5.5 | 380 |
| CQB80-65-125 | 80 | 65 | 50 | 20 | 7.5 | 380 |
| CQB80-65-160 | 80 | 65 | 50 | 32 | 11 | 380 |
| CQB100-80-125 | 100 | 80 | 100 | 20 | 11 | 380 |
| CQB100-80-160 | 100 | 80 | 100 | 32 | 18.5 | 380 |

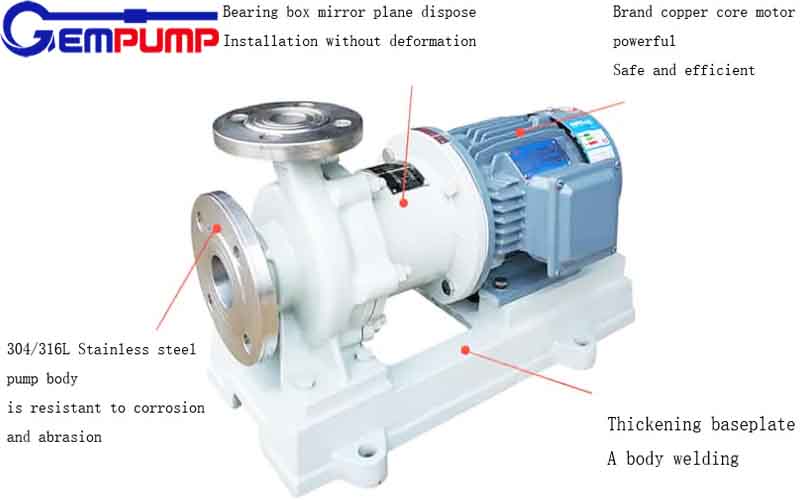

CQB Stainless Steel Pumps Application
1. Magnetic pump has advantage of compact structure, good- looking appearance, small volume, low noise, work reliable and easy to manage. It can be widely use for taking out acid, alkali liquid, oil type, rare valued liquid, volatile liquid and circular water equipment, filter accessories of chemical and industry, pharmacy, petroleum, galvanization, food-staff, film and television development, scientific research institution, National defense industry. Especially it is very suit for the take-out of leakiness, combustible, explosive liquid.
2. Corrosive liquid without solid particles, acids, alkalis, alcohol, bleach, photography solution, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, 4 ethylene oxide, water, salt and so on.
3. Enter the medium temperature -15~ +100, made of stainless steel, the density is not greater than 1600kg/m3, suction pressure is less than 0.2Mpa, the maximum working pressure of 1.3Mpa, transmission fluid without particles and fibers.
Major parts material form:
