Horizontal End Suction Industrial Centrifugal Pumps IS Series 12.5m3/H Capacity

Product Categories
Shijiazhuang ultimate technology solutions co.,ltd
Contact Now

Horizontal End Suction Industrial Centrifugal Pumps IS Series 12.5m3/H Capacity

Brand Name : Gempump

Model Number : IS50-32-125

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : 500USD/Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 Sets per month

Delivery Time : 3-5 working days

Packaging Details : Plywooden box

Product : IS Series Centrifugal Clean Water Pump

Model : IS Series

Pressure : 10 bar

Application : Clean Water

Material : Cast Iron

Theory : Centrifugal

Power : Electric Motor

Voltage : AC220V/AC380V

Warranty : 1 year

Structure : Single stage

Contact Now

Horizontal Centrifugal Pump With Large Flow Rate IS Series For Transport Dilute Liquid

IS Type Horizontal Centrifugal Pump Overview

Is type clean water centrifugal pump is an energy-saving pump jointly designed by the whole country. It is a new type of Ba, B and other single-stage clean water centrifugal pumps. The advantages are: reasonable layout of hydraulic performance, wide selection range of users, convenient maintenance, efficiency and suction head reaching the international average advanced level. Is single-stage clear water centrifugal pump is suitable for industrial and urban water supply and drainage. It can also be used for agricultural drainage and irrigation and for conveying clear water or other liquids with physical and chemical properties similar to clear water. The temperature is not higher than 80 ℃.

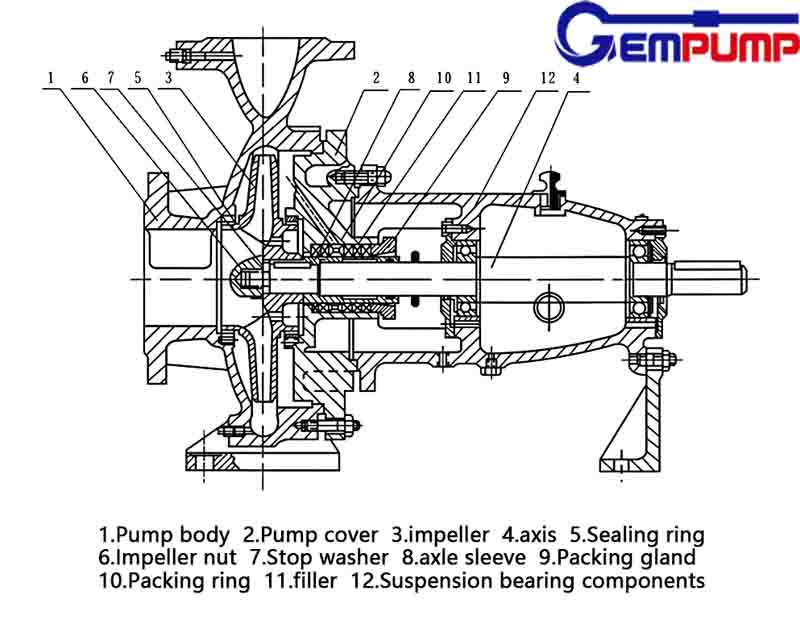

Is type clear water centrifugal pump adopts the marking performance and size specified in international standard ISO2858. It is mainly composed of pump body, pump cover, impeller, shaft, sealing ring,shaft sleeve and suspension bearing parts.
Item Single stage end suction centrifugal pump
Suction End
Model IS series
Material Cast iron or stainless steel
Color Blue and adjustable
Mode Horizontal
Drive Belt or coupling
Impeller Open impeller
Seal Soft packing seal or mechanical seal
Speed 2900r/min,1450r/min
Theory Centrifugal pump
Structure Single stage pump
Usage irrigation, transfer water and fire
Power Electric
Standard or Nonstandard Standard
Shaft Stainless steel
Outlet diameter 32-200mm
Capacity 6.3-400m³/h
Head 5-125m
Power 0.55-110kw
Warranty 1year
Certificate ISO9001:2008
OEM Acceptable
Feature Cheap, mature technology, widely used
IS Clean Water Pump Structure
The structure is simple,Stable operation Convenient maintenance
Durable,The hydraulic performance layout of the whole series is reasonable, the selection range of users is wide, and the maintenance is convenient; the efficiency and suction head reach the international average advanced level.
Horizontal End Suction Industrial Centrifugal Pumps IS Series 12.5m3/H Capacity
Horizontal End Suction Industrial Centrifugal Pumps IS Series 12.5m3/H Capacity
Model
inlet-outlet-impeller
Capacity
Head
Power
Effeciency
(mm)(mm)(mm)
(m3/h)
(m)
(kW)
(%)
50-32-125
12.5
20
2.2
60
50-32-125
6.3
5
0.55
54
50-32-160
12.5
32
3
54
50-32-160
6.3
8
0.55
48
50-32-200
12.5
50
5.5
48
50-32-200
6.3
12.5
0.75
42
50-32-250
12.5
80
11
38
50-32-250
6.3
20
1.5
32
65-50-125
25
20
3
69
65-50-125
12.5
50
0.55
64
65-50-160
25
32
0.5
65
65-50-160
12.5
5
0.75
60
65-40-200
25
50
7.5
60
65-40-200
12.5
12.5
1.1
55
65-40-250
25
80
15
50
65-40-250
12.5
20
2.2
46
80-65-125
50
20
5.5
75
80-65-125
25
5
0.75
71
80-65-160
50
32
7.5
73
80-65-160
25
8
1.5
69
8050-200
50
50
15
69
80-50-200
25
12.5
2.2
65
80-50-250
50
80
22
63
80-50-250
25
20
3
60
80-50-315
50
125
37
54
80-50-315
25
32
5.5
52
100-80-125
100
20
11
78
100-80-125
50
5
1.5
75
100-80-160
100
32
15
78
100-80-160
50
8
2.2
75
100-65-200
100
50
22
76
100-65-200
50
12.5
4
73
100-65-250
100
80
37
72
100-65-250
50
20
5.5
69
100-65-315
100
125
75
66
100-65-315
50
32
11
63
125-100-200
200
50
45
81
125-100-200
100
12.5
7.5
76
125-100-250
200
80
75
78
125-100-250
100
20
11
76
125-100-315
100
32
15
73
125-100-400
100
50
30
65
150-125-250
200
20
18.5
81
150-125-315
200
32
30
79
200-150-250
400
20
37
79
200-150-315
400
32
45
79
200-150-400
400
50
75

77

FAQ

1. Are you manufacturer or trading company?

We are a professional manufacturer of water pumps.

2. How can I get the quotation?

Leave us inquiry with your purchase requirements and you may contact us directly by Trade Manager.

3. How about warranty and after service?

1 Year Warranty,Lifelong video guidance from professional engineer.
